PLWG-700 Auto HEPA 4–10 m/min Filter Mini Paper Pleating Production
Line
PLWG-700 Auto HEPA 4–10 m/min Filter Mini Paper Pleating Production
Line
This machine is professionally designed and used for mini pleating
and hot melt dispensing on the fiber glass or polypropylene, and is
able to match different specifications of the filter elements,
which is characterized with high productive efficient and simple
operation.
PLWG-700 Auto HEPA 4–10 m/min Filter Mini Paper Pleating Production
Line Features
1.Glue dispensing and paper folding are both performed in the
identical machine. After paper collected, the filter paper is
conversed by longer conveyor belt, which helps to solidify the hot
melt and get needed length.
2.The main frame and conveying mechanism are controlled by
frequency converter which is easy to adjust.
3.The filter material's journey after glued can be regulated among
certain scopes. Which avails the dryness and humidity of hot melt
and good for firmly folded.
4.Set xix pairs of rollers together in a round table, which is
easier to change and apply to produce in different specifications.
5.Melt quickly, the glue dispensing quantity can be easily
controlled by frequency converter.
6.High productive efficiency, good smoothness.
7.Furthermore, we can customize the paper-pleating production line
of different specifications.
PLWG-700 Auto HEPA 4–10 m/min Filter Mini Paper Pleating Production
Line Specifications
| Adjustable Height Range | 20–100 mm |
| Distance Between Gluing Lines | 25.4 mm |
| Gluing Lines | 2 × 26 pcs |
| Working Air Pressure | 0.6 MPa |
| Max. Width | 700 mm |
| Production Capacity | 4–10 m/min |

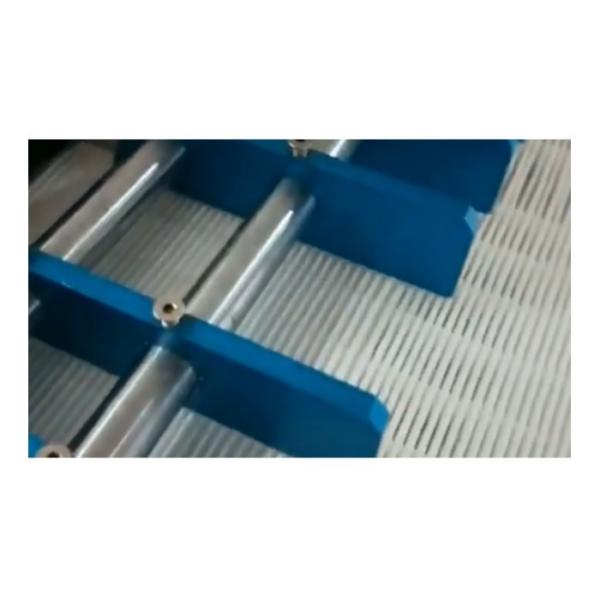

PLWG-700 Auto HEPA 4–10 m/min Filter Mini Paper Pleating Production
Line Photos
